Optimizing AWS ALB with RDS Integration

This week, I expanded my AWS Application Load Balancer setup. I moved from HTTP header-based routing to path-based routing and added a complete database layer with RDS MySQL. This project shows how to build a full three-tier web application on AWS using Terraform.

What Changed from the Previous Setup

In my last post, I used HTTP header-based routing where the ALB checked a custom-header value to route traffic. Now I switched to path-based routing where the ALB looks at the URL path instead. I also added a third application that connects to a MySQL database.

Old Setup (Header-Based)

• 2 applications (App1, App2)
• Routing based on HTTP headers
• No database layer
• Query string and host header redirects

New Setup (Path-Based + Database)

• 3 applications (App1, App2, App3)
• Routing based on URL paths
• RDS MySQL Multi-AZ database
• App3 connects to the database

1) Path-Based Routing Instead of Header-Based

The biggest change is how the ALB routes traffic. Instead of checking headers, it now checks the URL path.

App1 Rule – Routes /app1 traffic

hcl

myapp1-rule = {
  priority = 10
  actions = [{
    type = "weighted-forward"
    target_groups = [{
      target_group_key = "mytg1"
      weight = 1
    }]
    stickiness = {
      enabled  = true
      duration = 3600
    }
  }]
  conditions = [{
    path_pattern = {
      values = ["/app1*"]
    }
  }]
}

Explanation:

• Any request to /app1 or /app1/anything goes to target group mytg1
• Priority 10 means this rule is checked first
• Stickiness keeps users on the same backend for 1 hour

App2 Rule – Routes /app2 traffic

hcl

myapp2-rule = {
  priority = 20
  actions = [{
    type = "weighted-forward"
    target_groups = [{
      target_group_key = "mytg2"
      weight = 1
    }]
  }]
  conditions = [{
    path_pattern = {
      values = ["/app2*"]
    }
  }]
}

Explanation:

• Requests to /app2 or /app2/anything go to target group mytg2
• Priority 20 means this is checked after the App1 rule

App3 Rule – Default route for everything else

hcl

myapp3-rule = {
  priority = 30
  actions = [{
    type = "weighted-forward"
    target_groups = [{
      target_group_key = "mytg3"
      weight = 1
    }]
  }]
  conditions = [{
    path_pattern = {
      values = ["/*"]
    }
  }]
}

Explanation:

• The catch-all pattern /* routes everything else to mytg3
• This is the lowest priority (30), so it only matches if App1 and App2 rules don’t match
• Perfect for a default application or home page

Why Path-Based Routing?

Path-based routing is more common and user-friendly than header-based routing:

• Easier testing: Just visit /app1 in your browser instead of sending custom headers
• Better for end users: Normal web traffic uses paths, not custom headers
• SEO friendly: Search engines can index different paths
• Standard practice: Most microservices use path-based routing

Header-based routing is still useful for API gateways or internal services where you control the client, but for web applications, path-based is the standard.

2) Added RDS MySQL Database

I added a complete database layer with AWS RDS MySQL.

RDS Configuration

hcl

module "rdsdb" {
  source  = "terraform-aws-modules/rds/aws"
  version = "6.9.0"

  identifier = var.db_instance_identifier
  db_name    = var.db_name
  username   = var.db_username
  password   = var.db_password

  engine               = "mysql"
  engine_version       = "8.0.35"
  instance_class       = "db.t3.large"
  allocated_storage    = 20
  max_allocated_storage = 100

  multi_az = true
  create_db_subnet_group = true
  subnet_ids = module.vpc.database_subnets
  vpc_security_group_ids = [module.rdsdb_sg.security_group_id]

  performance_insights_enabled = true
  performance_insights_retention_period = 7
}

Key features:

• Multi-AZ: Automatic failover to another availability zone
• Auto-scaling storage: Grows from 20GB to 100GB as needed
• Performance Insights: 7-day monitoring enabled
• Backup: Configured backup windows and retention
• Separate subnets: Database runs in dedicated private subnets

Database Security Group

hcl

module "rdsdb_sg" {
  source  = "terraform-aws-modules/security-group/aws"
  version = "5.2.0"

  name = "rdsdb-sg"
  description = "Access to MySQL DB for entire VPC CIDR Block"
  vpc_id = module.vpc.vpc_id

  ingress_with_cidr_blocks = [{
    from_port   = 3306
    to_port     = 3306
    protocol    = "tcp"
    description = "MySQL access from within VPC"
    cidr_blocks = module.vpc.vpc_cidr_block
  }]

  egress_rules = ["all-all"]
}

Explanation:

• Only allows MySQL traffic (port 3306) from within the VPC
• No direct internet access to the database
• Follows security best practices with layered security

3) App3 – Java Application with Database Connection

App3 is a Java Spring Boot application that connects to the RDS database. This is the new piece that makes this a true three-tier application.

App3 EC2 Instance Configuration

hcl

module "ec2_private_app3" {
  depends_on = [ module.vpc ]
  source  = "terraform-aws-modules/ec2-instance/aws"
  version = "5.7.0"

  name          = "${var.environment}-app3"
  ami           = data.aws_ami.amzlinux2.id
  instance_type = var.instance_type
  key_name      = var.instance_keypair

  user_data = templatefile("app3-ums-install.tmpl", {
    rds_db_endpoint = module.rdsdb.db_instance_address
  })

  for_each = toset(["0", "1"])
  subnet_id = element(module.vpc.private_subnets, tonumber(each.key))
  vpc_security_group_ids = [module.private_sg.security_group_id]
}

Key points:

• Uses templatefile() to inject the RDS endpoint into the user data
• Creates 2 instances across different availability zones
• Runs in private subnets (no direct internet access)

App3 Installation Script

bash

#! /bin/bash
sudo amazon-linux-extras enable java-openjdk11
sudo yum clean metadata && sudo yum -y install java-11-openjdk

mkdir /home/ec2-user/app3-usermgmt && cd /home/ec2-user/app3-usermgmt
wget https://github.com/stacksimplify/temp1/releases/download/1.0.0/usermgmt-webapp.war

export DB_HOSTNAME=${rds_db_endpoint}
export DB_PORT=3306
export DB_NAME=webappdb
export DB_USERNAME=dbadmin
export DB_PASSWORD=dbpassword11

java -jar /home/ec2-user/app3-usermgmt/usermgmt-webapp.war > /home/ec2-user/app3-usermgmt/ums-start.log &

Explanation:

• Installs Java 11
• Downloads the User Management System WAR file
• Sets database connection environment variables
• The ${rds_db_endpoint} is replaced by Terraform with the actual RDS endpoint
• Starts the Java application on port 8080

App3 Target Group

hcl

mytg3 = {
  create_attachment = false
  name_prefix       = "mytg3-"
  protocol          = "HTTP"
  port              = 8080
  target_type       = "instance"

  health_check = {
    enabled             = true
    interval            = 30
    path                = "/login"
    port                = "traffic-port"
    healthy_threshold   = 3
    unhealthy_threshold = 3
    timeout             = 6
    protocol            = "HTTP"
    matcher             = "200-399"
  }
}

Important differences from App1/App2:

• Port 8080 instead of 80 (Java applications typically use 8080)
• Health check path is /login (the login page of the User Management System)
• Same stickiness and deregistration settings

4) Updated Security Group for App3

I updated the private security group to allow port 8080 for App3.

hcl

module "private_sg" {
  source  = "terraform-aws-modules/security-group/aws"
  version = "5.2.0"

  name = "private-sg"
  description = "Security Group with HTTP & SSH port open for entire VPC Block"
  vpc_id = module.vpc.vpc_id

  ingress_rules = ["ssh-tcp", "http-80-tcp", "http-8080-tcp"]
  ingress_cidr_blocks = [module.vpc.vpc_cidr_block]

  egress_rules = ["all-all"]
}

What changed:

• Added http-8080-tcp to the ingress rules
• This allows App3 to receive traffic from the ALB
• Still only accessible from within the VPC

5) Enhanced Bastion Host

I upgraded the bastion host to include database tools.

bash

#! /bin/bash
sudo yum update -y
sudo rpm -e --nodeps mariadb-libs-*
sudo amazon-linux-extras enable mariadb10.5
sudo yum clean metadata
sudo yum install -y mariadb
sudo mysql -V
sudo yum install -y telnet

Why this matters:

• You can now connect to RDS from the bastion host
• Test database connectivity with mysql -h <rds-endpoint> -u dbadmin -p
• Useful for debugging and running SQL queries
• telnet helps test port connectivity

6) Simplified DNS Configuration

I simplified the Route53 setup to use one DNS record instead of multiple.

Old Configuration (2 DNS records)

hcl

# myapps11.rezaops.com
# azure-aks11.rezaops.com

New Configuration (1 DNS record)

hcl

resource "aws_route53_record" "apps_dns" {
  zone_id = data.aws_route53_zone.mydomain.zone_id
  name    = "dns-to-db.rezaops.com"
  type    = "A"
  alias {
    name                   = module.alb.dns_name
    zone_id                = module.alb.zone_id
    evaluate_target_health = true
  }
}
```

**Why one record:**
- All apps are behind the same ALB
- Routing happens by path, not by hostname
- Simpler DNS management
- All traffic goes through `dns-to-db.rezaops.com`

## 7) What Was Removed

To make room for the new architecture, I removed the redirect rules:

**Removed:**
- Query string redirect rule (`?website=aws-eks`)
- Host header redirect rule (`azure-aks11.rezaops.com`)
- HTTP header-based routing (`custom-header`)

**Why removed:**
These features were great for learning ALB capabilities, but in a real three-tier application, path-based routing is more practical and user-friendly.

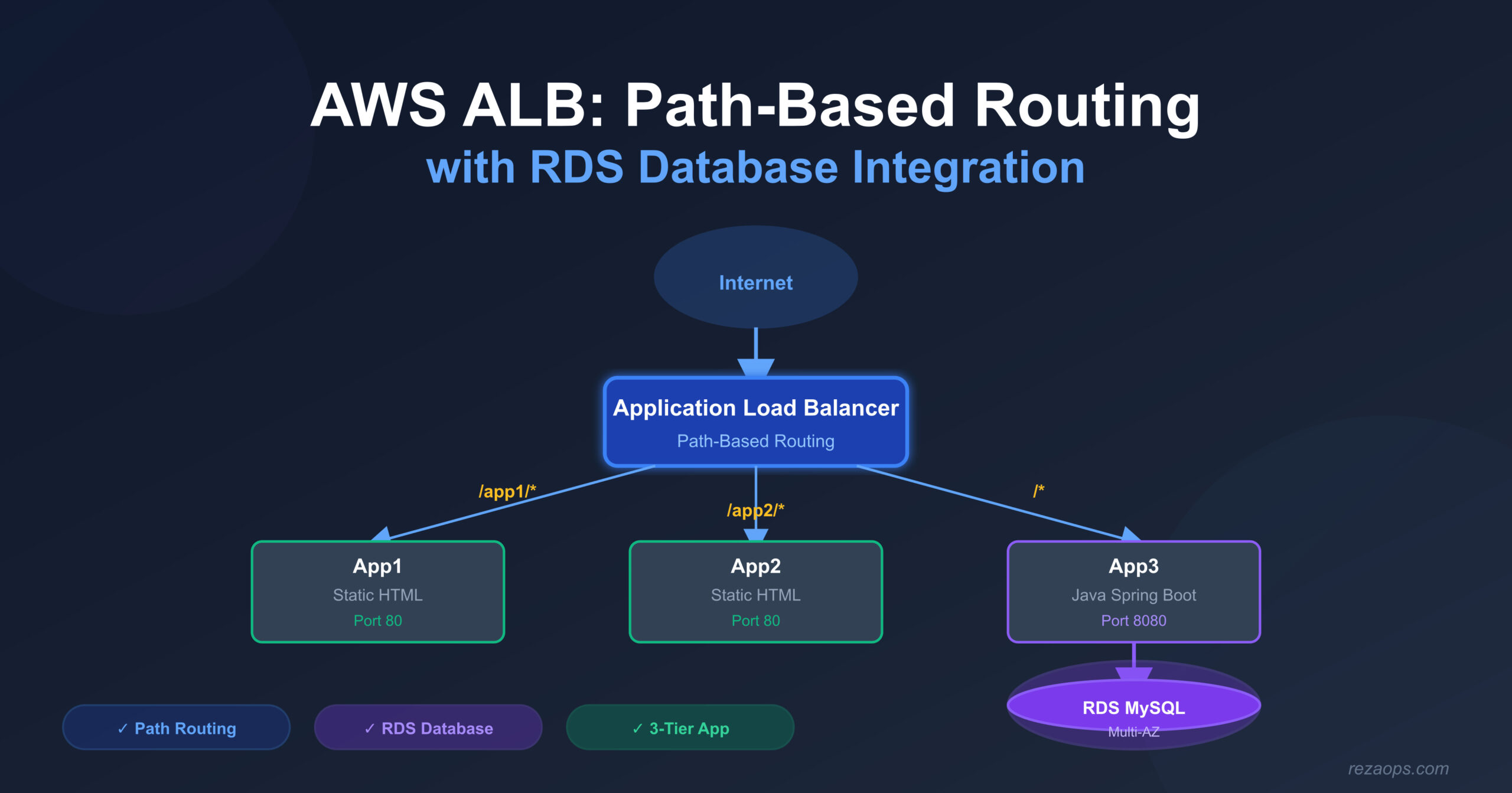

## Architecture Overview

Here's how everything connects:
```
Internet → Route53 (dns-to-db.rezaops.com)
    ↓
Application Load Balancer (HTTPS)
    ↓
┌─────────────┬─────────────┬─────────────┐
│   /app1/*   │   /app2/*   │     /*      │
│     ↓       │     ↓       │     ↓       │
│  App1 TG    │  App2 TG    │  App3 TG    │
│  (port 80)  │  (port 80)  │  (port 8080)│
│     ↓       │     ↓       │     ↓       │
│  2x EC2     │  2x EC2     │  2x EC2     │
│  (Static)   │  (Static)   │  (Java)     │
└─────────────┴─────────────┴──────┬──────┘
                                   ↓
                            RDS MySQL (Multi-AZ)
                            (Database Subnets)

Testing the Setup

After deployment, you can test all three applications:

App1 (Static HTML):

bash

curl https://dns-to-db.rezaops.com/app1/
# Shows pink background page

App2 (Static HTML):

bash

curl https://dns-to-db.rezaops.com/app2/
# Shows teal background page

App3 (Java + Database):

bash

curl https://dns-to-db.rezaops.com/
# Shows User Management System login page

Database Connection (from bastion):

bash

ssh -i terraform-key.pem ec2-user@<bastion-ip>
mysql -h <rds-endpoint> -u dbadmin -p
# Password: dbpassword11

What I Learned

1. Path-based routing is simpler: Users just visit different URLs, no need for custom headers
2. RDS integration is straightforward: The Terraform RDS module handles most complexity
3. Template files are powerful: Using templatefile() to inject the database endpoint keeps the code clean
4. Security layers matter: Separate security groups for ALB, EC2, and RDS provide defense in depth
5. Multi-AZ is important: Both the database and EC2 instances span multiple availability zones for high availability

Files Added

New files in this project:

• c5-06-securitygroup-rdsdbsg.tf – RDS security group
• c7-06-ec2instance-private-app3.tf – App3 instances
• c13-01-rdsdb-variables.tf – Database variables
• c13-02-rdsdb.tf – RDS configuration
• c13-03-rdsdb-outputs.tf – Database outputs
• app3-ums-install.tmpl – App3 installation template
• jumpbox-install.sh – Bastion with MySQL client
• rdsdb.auto.tfvars – Database configuration
• secrets.tfvars – Database password

Summary

I evolved my ALB setup from a header-based routing demo to a complete three-tier web application:

• Changed routing from HTTP headers to URL paths (/app1, /app2, /)
• Added RDS MySQL with Multi-AZ for high availability
• Added App3 – a Java application that connects to the database
• Enhanced the bastion host with MySQL client tools
• Simplified DNS to use one domain for all apps
• Improved security with separate security groups for each layer
